YCQR7-G Soft start control cabinet

General

The YCQR7-G soft starter control cabinet is used in situations where a motor is running.The control cabinet contains a soft starter primarily used for the smooth start of the motor,avoiding the impact and pressure during startup. It is typically employed in scenarios with large motors or where frequent starting and stopping is required, extending the motor’s lifespan and enhancing system stability. Soft starter cabinets are widely used in industrial sectors, energy fields, mining, and other heavy-duty equipment applications.

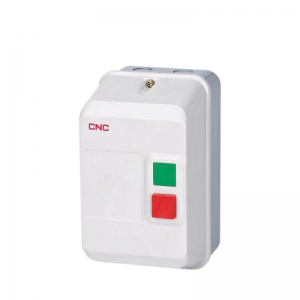

LE1 Magnetic Starter

General

LE1 Magnetic starter is suitable for using in the circuits the rated voltage up to 690V AC 50Hz or 60Hz.With AC-3 type,LE1 is used for starting or halting of three-phase squirrel case electromotor which rated working voltage is 380V and rated working current is from 9A to 95A. Combining with matchable thermal relay can protect the motor from overload and phase failure.

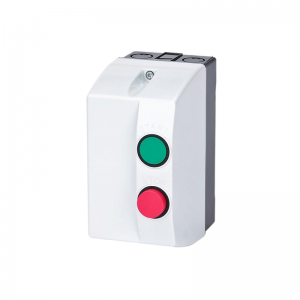

YCQ7 Magnetic Starter

YCQ7 series magnetic starter is suitable for using in the circuits the rated voltage up to 660V, AC 50Hz or 60Hz, rated control power to 45kW and current to 95A. It is used to control the direct start and stop of the motor, and the starter with thermal overload relay protects the motor from overload and phase failure.

Standard: IEC/EN 60947-4-1.

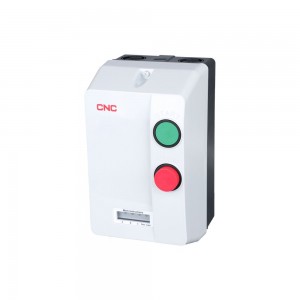

YCQJ7 Motor Controller

General
YCQJ7 series motor controller (hereinafter referred to as controller)is mainly used in circuits with afrequency ofAC 50Hz(or 60Hz),a rated operational voltage of up to380V and a rated control power of up to 18.5kW (current upto 38A)to control the direct startand stop of water pumps ormotors,provide motors withoverload and phasefailure protection,and realize automaticliquid level control for civil water towersand reservoirs.Thisproduct is not applicable to theliquid levelcontrol oflow-conductivity liquids,such as oil,purified water,inflammableandexplosive chemical liquids and high-density sewage.
Standards:IEC60947-4-1.

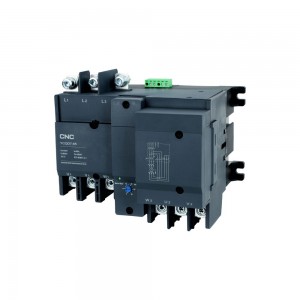

YCQD7 Series integrated star delta starter

The YCQD 7 series intelligent integrated star delta starter ( here in after referred to as the starter ) is suitable for three – phase squirrel cage induction motors with AC 5 0 Hz , rated voltage of 3 8 0 V / 4 0 0 V , and rated working current of up to 1 1 0 A ( phase current when the starter is delta connected ) , controlling power up to 9 0 kW . It is used to control the start , operation , and stop of the stator winding from star to de lta co nve rs io n , i n o rde r to red uce the i m pact of sta rti ng c u rre nt a nd moto r sta rti ng o n the t ra ns m iss io n netwo rk .

The starter adopts a modular design and integrated structure , integrating contact or s , intelligent co nt ro lle rs , a nd a ux ilia ry co ntacts . The i nte llige nt co nt ro lle r ca n a uto matica lly co nt ro l the starter to run according to the predetermined program , there by completing the star delta starting of the motor .

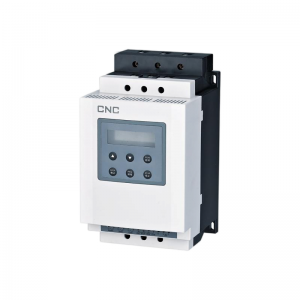

YCQR2 Soft Starter

AC squirrel-cage type asynchronous electric motor is a popular electric apparatus. By applying intelligent, the apparatus completes stable load making capacity and

reduces impact strength to electrical network; it can work with stable and reliable performance. YCQR2 Model soft starter completes Human-machine interface.

Applied to a scope of 5.5~600KW in thermal power plant, hydraulic power plant, metallurgy, chemical industry, architecture , cement plant ,mining industry as well as environmental protection projects. It’s the ideal replacer of Y-△ Starter, reactor starter, auto-transformer starter etc.
