Product Category

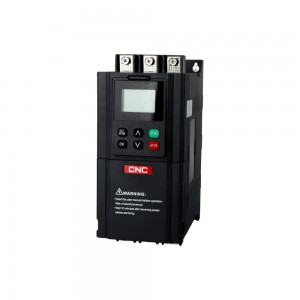

YCQR7 Soft Starter

General

Read the ZR 900 installation instructions carefully before use. If you do not read the relevant instructions carefully, you will violate the relevant safety regulations, which may affect the

normal use of the soft starter. To install the ZR900, please prepare the following tools : small word screwdriver, wire cutter, wrench, etc.

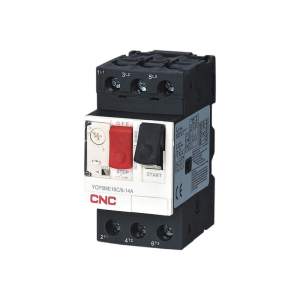

YCP5 Motor Starter

General
YCP5 series AC Motor Starter is suitable for circuits the alternating voltage up to690V,current up to 80A.The product works to control theoverload,phase loss,shortcircuit protection and infrequent starts of a three-phase squirel cage asynchronousmotor.The Motor Starter can protect the distributing line for infrequent loadtransfer,and it can also works as an isolator

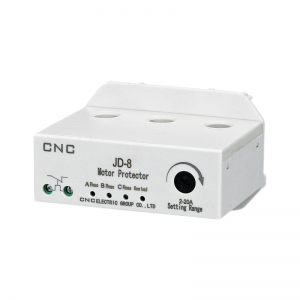

JD-8 Motor Integrated Protector

General

JD-8 Motor Integrated Protector is mainly applicable to fault protection of overload and phase failure of low-voltage three-phase AC asynchronous motor in electric

power system with AC frequency 50Hz and rated insulation voltage less than 690V.

The protector is usually matched with the contactor in AC motor loop circuit for use.

It conforms to IEC 60947-4-1 standards.

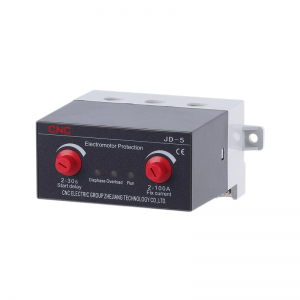

JD-5, JD-6 Motor Integrated Protector

General

JD-5, JD-6 Motor Integrated Protector (hereinafter referred to as protector) is

applicable for overload and phase-failure protection of AC motor @ A.C.50Hz, less

than AC690V rated insulation voltage and 20A~300A rated operating current for its

continuous working or discontinuous working. Protector and AC contactor are

generally used cooperatively.

This product meets the requirements of IEC 60947- 4-1.

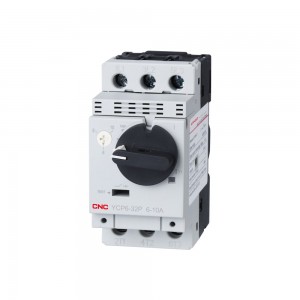

YCP6 Motor Protector

YCP6 series Motor protection circuit breaker (also known as: Motor Protector or Motor starter, hereinafter referred to as “circuit breaker”)is suitable for AC voltage to 690V, the highest current to 32A circuit, is a circuit breaker integrating the functions of isolation switch, circuit breaker and thermal relay with isolation protection, overload protection, temperature compensation, phase failure protection, short circuit protection. Application range: three-phase mouse cage asynchronous motor direct start and control, distribution line protection and infrequent load conversion.

Standard: IEC60947-2, 60947-4-1.
