DTS726D-7P WIFI Din-rail Three-phase Meter: Revolutionizing Energy Management

In today’s fast-paced world, where energy efficiency and reliability are paramount, having the right tools to monitor and control electrical consumption is crucial. The DTS726D-7P WIFI Din-rail Three-phase Meter stands out as a versatile and advanced solution for a wide range of applications. From residential buildings to industrial infrastructures, this meter promises to deliver accurate measurements, robust protection, and seamless connectivity. In this blog post, we will delve into the intricacies of the DTS726D-7P, exploring its design, features, functionality, and the overall impact it has on energy management.

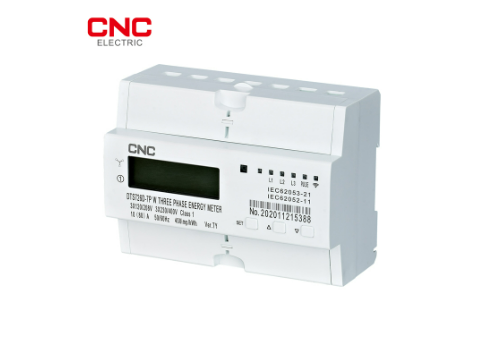

Introduction to the DTS726D-7P

The DTS726D-7P is a high-performance, three-phase four-wire energy meter designed for measuring AC active energy and various electrical parameters. It combines advanced technology with user-friendly features, making it an ideal choice for both professionals and DIY enthusiasts. The meter boasts a sleek design and is compact enough to fit onto a standard 35mm din rail, making installation a breeze. With its robust construction and high overload capability, the DTS726D-7P is built to last, ensuring long-term reliability and accuracy.

Key Features and Benefits

Overload and Short Circuit Protection

One of the standout features of the DTS726D-7P is its overload and short circuit protection. The meter is equipped with built-in safeguards that automatically shut off the power supply in the event of an overload or short circuit, preventing potential damage to your electrical system. This feature is particularly useful in industrial settings, where electrical loads can fluctuate significantly.

Controlling Capabilities

The DTS726D-7P is not just a passive measuring device; it also offers controlling capabilities. With its timing and delay control function, you can set specific times for electrical devices to turn on or off, optimizing energy consumption and reducing costs. This feature is particularly handy for businesses that operate on a strict schedule, such as restaurants or retail stores.

Versatile Applications

The versatility of the DTS726D-7P makes it suitable for a wide range of applications. Whether you’re managing a residential building, a non-residential facility, or an energy source industry, this meter has got you covered. Its ability to adapt to different electrical systems and loads makes it a one-stop solution for all your energy management needs.

Instantaneous Release Types

The DTS726D-7P comes in three different types of instantaneous release, classified as type B (3-5)ln, type C (5-10)ln, and type D (10-20)ln. Each type is designed to cater to specific electrical loads and requirements, ensuring that you get the most accurate and reliable measurements possible.

Detailed Functionality

LCD Display and Keypad

The DTS726D-7P features an LCD display with backlight and a keypad for navigating through different menus and settings. The display provides clear and concise information on electrical parameters such as voltage, current, active power, reactive power, power factor, and frequency. The keypad allows you to easily access and modify settings, making the meter incredibly user-friendly.

Bi-directional Energy Measurement

The meter is capable of measuring bi-directional total active energy, including reverse active energy. This feature is essential for systems that generate their own electricity, such as solar or wind power systems. It ensures that you get an accurate picture of your energy consumption, regardless of the direction of power flow.

Real-time Monitoring and Control

With its RS485 communication port and WIFI connectivity, the DTS726D-7P allows you to monitor and control your electrical system remotely. The meter supports the MODBUS-RTU protocol, making it compatible with a wide range of automation systems and software. You can use the Smart Life or Tuya Smart APP to access real-time data, set schedules, and control your electrical devices from anywhere in the world.

Historical Data Tracking

The DTS726D-7P also offers day/month/year history active energy consumption tracking. This feature allows you to analyze your energy consumption patterns over time, helping you identify areas for improvement and optimize your energy usage.

Detailed Parameter Checking

The meter allows you to check detailed parameters such as the A-phase real current, A-phase voltage, and conjunction phase active power via the APP. This information is crucial for diagnosing electrical issues and ensuring the optimal performance of your system.

Remote Control and Manual Operation

The DTS726D-7P offers both remote control via the APP and manual control using the button on the meter. This dual-mode operation ensures that you always have access to your electrical system, even if the internet connection is down.

Pulse Output and LED Indicators

The meter features a pulse LED that indicates its working status and a pulse output with optical coupling isolation. Additionally, there are LED indicators for loss of phase and WIFI connection, providing you with visual feedback on the meter’s status at all times.

Long-term Data Storage

The DTS726D-7P has a memory chip that can store energy data for more than 15 years after power off. This feature ensures that you never lose important data, even in the event of a power outage.

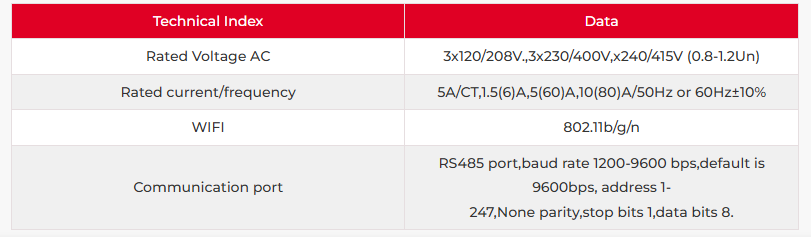

Specifications and Compatibility

The DTS726D-7P is compatible with a wide range of voltages and currents, making it suitable for different electrical systems. It supports rated voltages of 3×120/208V, 3×230/400V, and 3×240/415V (0.8-1.2Un) and rated currents/frequencies of 5A/CT, 1.5(6)A, 5(60)A, and 10(80)A/50Hz or 60Hz±10%. The meter’s WIFI connectivity supports the 802.11b/g/n standard, ensuring fast and reliable communication.

The RS485 communication port supports baud rates of 1200-9600 bps, with a default of 9600bps. The address range is 1-247, and the protocol supports none parity, stop bits 1, and data bits 8. This compatibility ensures that the DTS726D-7P can be integrated into existing automation systems with minimal effort.

Conclusion

In conclusion, the DTS726D-7P WIFI Din-rail Three-phase Meter is a versatile and powerful tool for managing electrical consumption. Its combination of advanced features, user-friendly design, and robust construction makes it an excellent choice for a wide range of applications. Whether you’re a homeowner looking to reduce your energy bills or a business owner seeking to optimize your energy consumption, the DTS726D-7P has got you covered.

With its real-time monitoring and control capabilities, overload and short circuit protection, and long-term data storage, this meter is poised to revolutionize the way we manage energy. Don’t wait to upgrade your energy management system; contact us at cncele@cncele.com to learn more about the DTS726D-7P and how it can benefit you.
